<1>

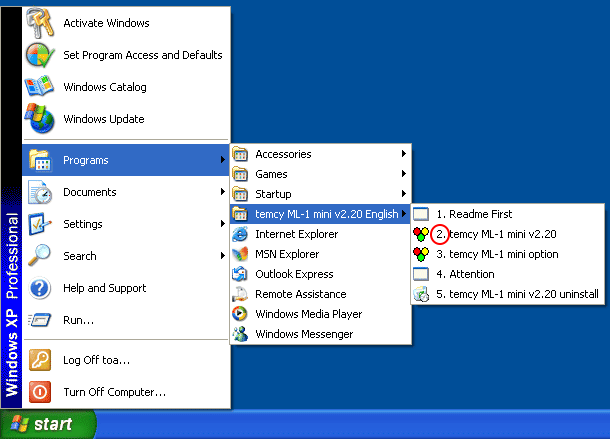

The setting program of ML-1 mini software is started in such a way of <A> or <B>. <A> Double-click on the shortcut of temcy ML-1 mini v2.20 located on the desktop. <B> Chose 2. temcy ML-1mini v2.20 in the menu. Start | Program | temcy ML-1mini v2.20 English | 2.temcy ML-1mini v2.20. Note: The operation of ML-1 mini needs to register the followings; <2>SYSTEM, <3>ACCOUNT and <5>SERVICE. Set the other properties as appropriate. ATTENTION: If the setting program is started in operation, ML-1 mini is forced to stop. See <5> SERVICE.

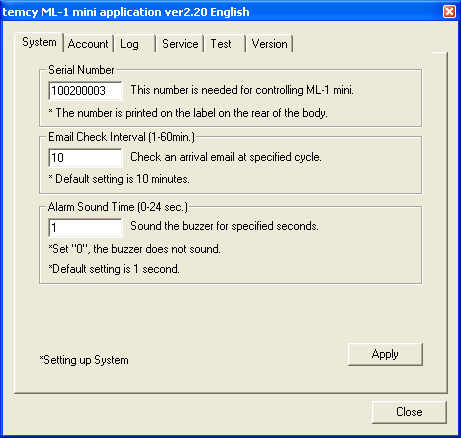

<2>	SYSTEM * Enter your Serial Number. The Serial Number is printed on the label on the rear of the body. * Enter Email check Interval from 1 to 60min. * Enter the Alarm sound time. Setting "0" the buzzer does not sound. Click "Apply" after inputting.

<3>

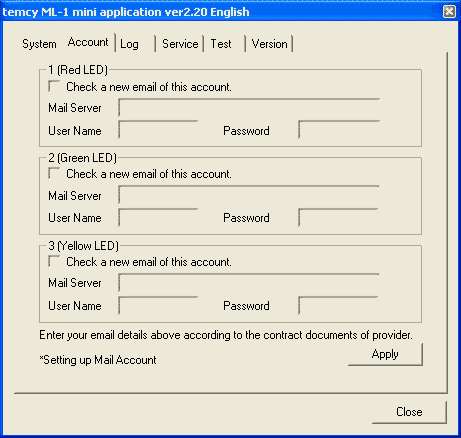

ACCOUNT * Enter Mail Server [according to the contract documents of provider.] * Enter User ID [according to the contract documents of provider.] * Enter Password [according to the contract documents of provider.] * Click "Apply" after inputting. Put a check mark in the box of the account which check new Email. This function doesn't work if a check mark is not put.

<4>

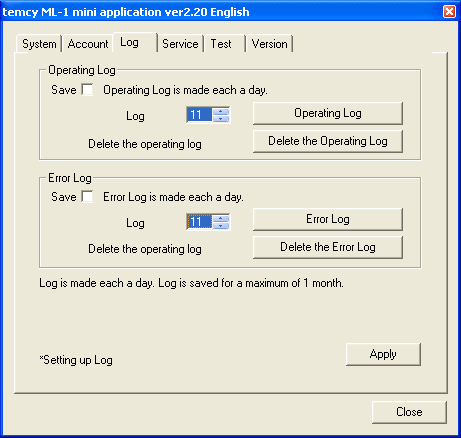

LOG * Putting a check mark in Save, log data of the previous month is saved in log files. * To display the log file, select Log Date and click Operating Log/Error Log. Only if there are log files, the text file of log data opens. * To delete the log data, click Delete. * Click "Apply" after altering the contents.

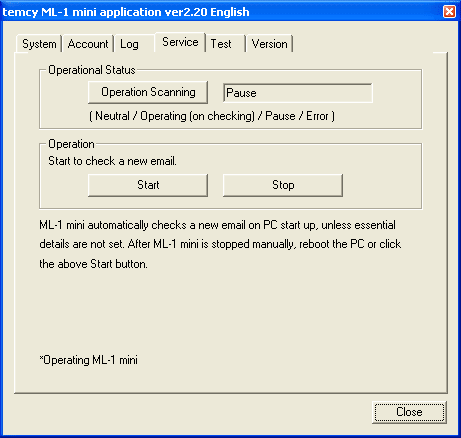

<5>	SERVICE <Start/Stop> When ML-1 mini is operated for the first time, it is necessary to click "Start". * To check a new email, click "Start". * To stop checking a new email, click "Stop".

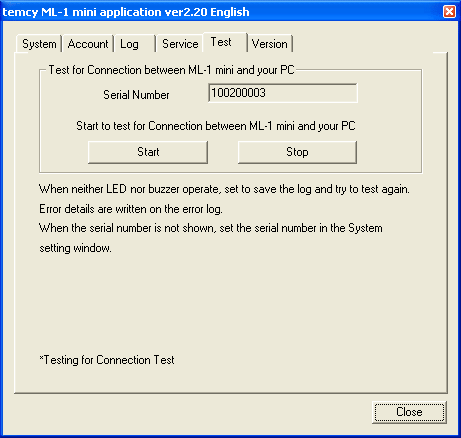

<6>	TEST Click "Start" to light LED sequentially, sound a buzzer. To stop testing, click Stop -> "Close".

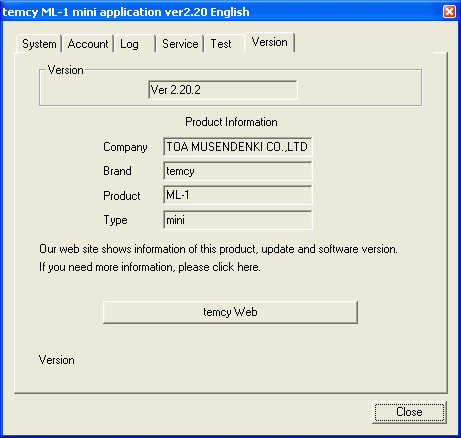

<7>	Version * The product information of ML-1 mini in current use is shown. * Our web site shows information of this product, update and software version. If you need more information, please visit our web site.

As above mentioned, if only <2>, <3> and <5> are registered ML-1 mini can check a new mail.
After your next login, ML-1 mini automatically runs as a resident software.
<red underline in the below figure>
To stop the operation of ML-mini, right-click on the red underlined.
To operate again after the operation is stopped, reboot your PC and then click Start button in the window of <5> .
